PerTronix Flame-Thrower® HV Coil
Want to know if there is an Flame-Thrower Coil HV available for your vehicle?
Fill out the online PerTronix Enquiry Form and we will get back to you with an answer, usually within two days.
Please ensure you include as much info as possible regarding your current distributor and points, as without it, we may not be able to match a kit for you.
Pertronix Flame-Thrower Coil HV 60,000 VOLT high performance coil

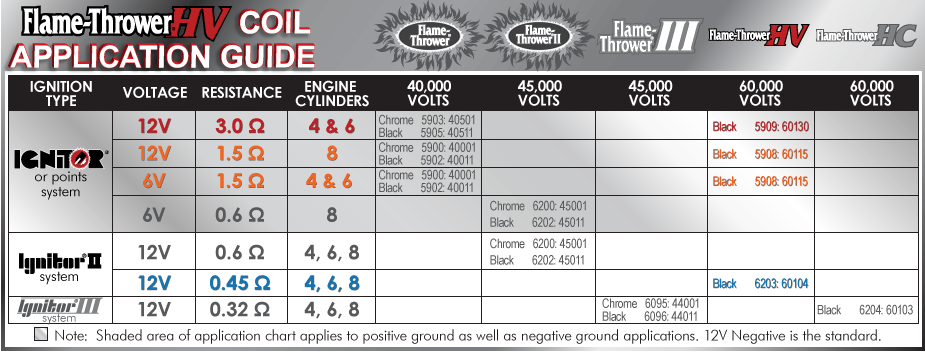

The Flame-Thrower® HV High Performance Coil is designed from aircraft 6063 T5 aluminium, ensuring full performance at any temperature range. The Flame-Thrower® HV High Performance Coil is available in three levels of primary resistance, to match your driving requirements. Refer to the chart above for the coil type that will best suit your needs.
Features of the Flame-Thrower®HV coil:
- Maximum Voltage: 60,000 volts
- Available in three primary resistance values (see chart)
- Highly efficient E-core design
- Vacuum potted coil body for longer life and increased reliability
- Precision machined male high tension terminal and brass primary terminals
- High Vibration Epoxy Filled Coil
- Dimensions: L 11.68cm x W 11.81cm x H 8cm
- Warranty: 90 Days
Our HV (High Voltage) E-core design yields an incredible 60,000 volts and operates with no degradation throughout temperature ranges that surpass military specifications. The special heat sink design made from aircraft 6063 T5 aluminium, efficiently transfers heat optimising energy output for street/strip and off road applications.
Flame-Thrower® HV 0.45 ohm coils are also compatible with most capacitive discharge (CD) boxes including our own Second Strike™.
Have you got one of these popular models?
NISSAN GQ Patrol, TOYOTA Landcruiser 2F & 3F, Holden Commodore, Ford Falcon or Fairlane
If so, checkout our webstore which always has these kits in stock, as well as savings on Kit & Coil packs.
If purchased and paid for prior to midday (AEST) on a weekday, they are usually shipped the same day.
